STANDARDS
Product DIN VDE 0250; IEC 60228
Test IEC 60332-1-2
1-SCOPE

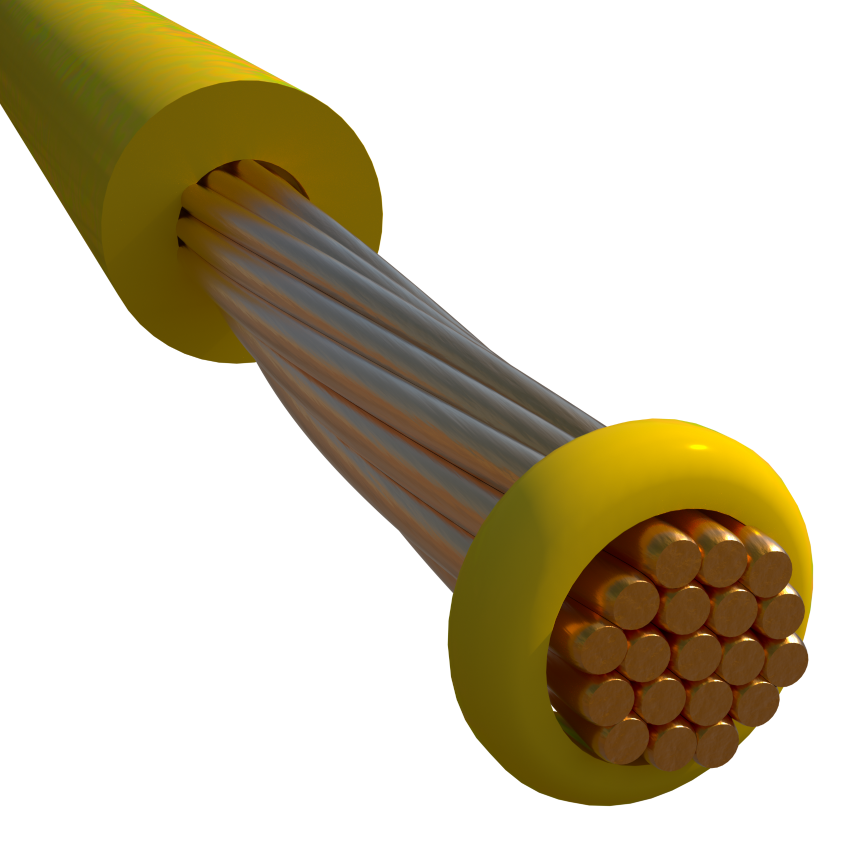

This specification covers single core, PVC insulated cables, intended for internal wiring in
dry locations,concealed in conduits.
2.1-Conductor
Tinned copper conductors, solid or stranded, complying with the applicable requirements of
IEC 228.
2.2 - Insulation
PVC based thermoplastic material
Insulation: XLPE with fire-resistant layer
Armour: steel wire armour (SWA)
Oversheath: halogen-free low-smoke (LSOH)
Standard: IEC 60502-1
Fire resistance: IEC 60331-21, 750°C, 90 minutes
Test voltage during fire: 500 V conductor-to-conductor; 300 V conductor-to-earth
Routine Tests
- Max. DC conductor resistance at 20°C acc. to IEC 60228
- Spark test during insulation
Liban Cables will carry out these tests on all the length and tests certificates will be provided.
Sample Tests
- Check of the build - up and color coding of the cable
- Check of dimensions
Insulation : according to VDE 250 Table 6 Column 2
These tests will be carried out on one length of each size during each inspection .
Tests certificates will be provided by Liban Cables
Type Tests
Mechanical characteristics on insulation material (tensile strength and elongation at break) in accordance with VDE
250.
These tests will be carried out on one length of the order
Tests certificates will be provided by Liban Cables
